Reliable welding machines are an essential prerequisite for a good weld.
|
|
|
|
|
|

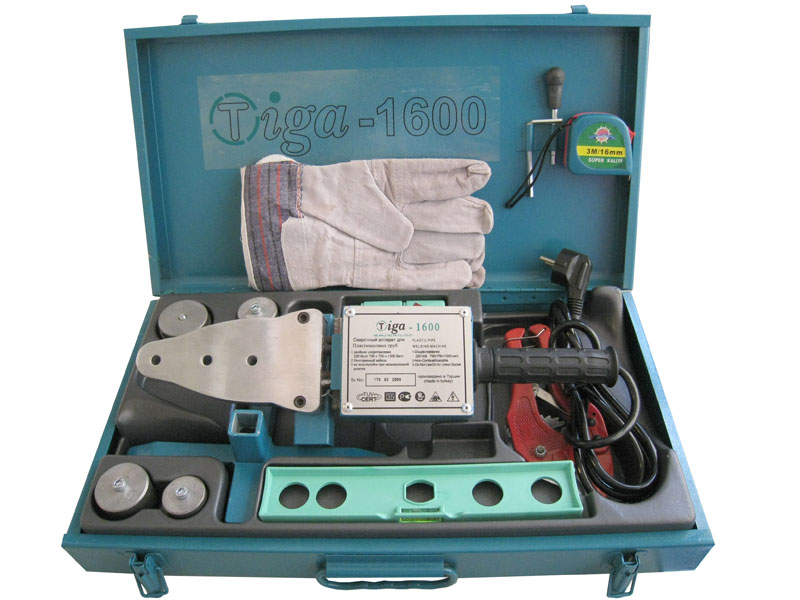

1) Art.TG 01 Set
Installed Capacity 850+650=1500 Watt (Double Resistance)
Supply Voltage 220-240V ~
Frequency 50-60 Hz.
Operating Temperature 270 ° C
Cable 3X1 mm² cable fireproof up to 200 ° C has been used.
Thermostat Regulation Indicator 50-320°C Resistor Material Stainless Steel
Main Supply Cross Section 3 x 2.5 mm² Supply Cable
Protection Class IP 44
Main Fuse Value 16 A (on the power connection line)
|
|
|
|
|
Other Remarks
a- Three heads can be simultaneously installed on the iron.
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d- The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
|
|
|
|
|
|

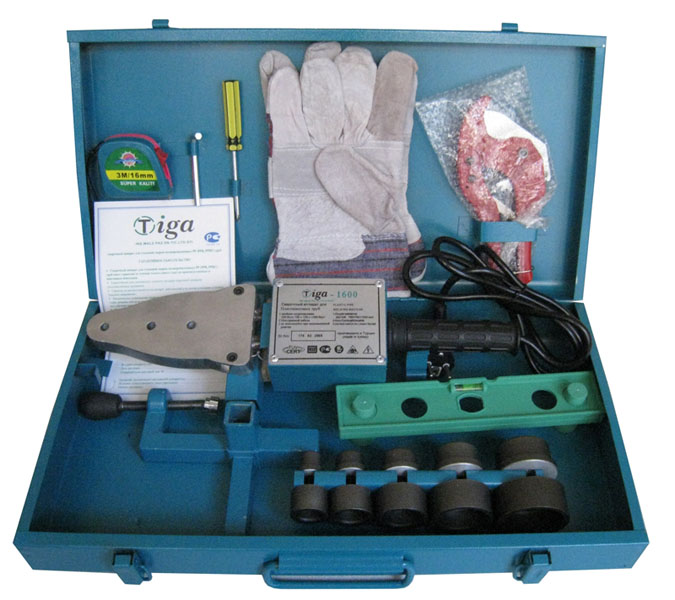

2) Art.TG 02 Set
Installed Capacity 850+650=1500 Watt (Double Resistance)
Supply Voltage 220-240V ~
Frequency 50-60 Hz.
Operating Temperature 270 ° C
Cable 3X1 mm² cable fireproof up to 200 ° C has been used.
Thermostat Regulation Indicator 50-320°C Resistor Material Stainless Steel
Main Supply Cross Section 3 x 2.5 mm² Supply Cable
Protection Class IP 44
Main Fuse Value 16 A (on the power connection line)
|
|
|
|
|
Other Remarks
a- Three heads can be simultaneously installed on the iron.
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d- The welding machine set includes heads of 20,25,32,40, 50 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
|
|
|
|
|
|
3) Art.TG 03 Set
Installed Capacity 750+750=1500 Watt (Double Resistance)
Supply Voltage 220-240V ~
Frequency 50-60 Hz.
Operating Temperature 270 ° C
Cable 3X1 mm² black cable
Thermostat Regulation Indicator 50-320 ° C
Resistor Material Stainless Steel
Main Supply Cross Section 3 x 2.5 mm² Supply Cable
Protection Class IP 44
Main Fuse Value 16 A (on the power connection line)
|
|
|
|
|
Other Remarks
a- Two heads can be simultaneously installed on the iron.
b- The ON-OFF switch is without a light indicator.
c- A special metal floor foot is included.
d- The welding machine set includes heads of 20,25,32,40mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
|
|
|
|
|
|
4) Art.TG 04 Set
Installed Capacity 750+750=1500 Watt (Double Resistance)
Supply Voltage 220-240V ~
Frequency 50-60 Hz.
Operating Temperature 270 ° C
Cable 3X1 mm² black cable
Thermostat Regulation Indicator 50-320 ° C
Resistor Material Stainless Steel
Main Supply Cross Section 3 x 2.5 mm² Supply Cable
Protection Class IP 44
Main Fuse Value 16 A (on the power connection line)
|
|
|
|
|
Other Remarks
a- Two heads can be simultaneously installed on the iron.
b- The ON-OFF switch is without a light indicator.
c- A special metal floor foot is included.
d- The welding machine set includes heads of 20,25,32,40, 50mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
|
|
|
|
|
|
5) Art.TP 01
Name: TEST PRESSURE PUMP
Dimensions: 190x530x305 mm
Tank volume:12 l.
Piston volume: 45 ml
Outlet connection: R 1/2"
Test Liquid Water, oil
Maximum temperature: 500 C – 1200 F
Maximum pressure: 60 bar 860 psi. 6 Mpa
Other Remarks
The system pressure of the drinking water we consume at home and at work in our daily life is between 5 and 8 bars. A test pressure of 15 bars is sufficient for a leak test on this kind of systems.
|
|
|
|
|
